Description
-
DJI Mavic 3 Thermal with 1-Year DJI Care Enterprise Basic
The DJI Mavic 3 Thermal is a groundbreaking addition to DJI's renowned drone lineup, setting new standards for thermal imaging. With impeccable craftsmanship and cutting-edge design, this drone redefines aerial thermography. Its sleek and portable build ensures that it's both highly functional and visually appealing. The Mavic 3 Thermal showcases DJI's commitment to innovation. Equipped with a state-of-the-art thermal imaging camera and powerful flight capabilities, it offers unmatched aerial thermal inspection and surveillance. DJI continues to push boundaries, enabling users to capture vital thermal data from the skies.
The DJI Mavic 3 Thermal has the same tele camera as the Mavic 3 Enterprise, a 48 MP camera with a 1/2" CMOS sensor, as well as a thermal camera with a Display Field of View (DFOV) of 61° and an equivalent focal length of 40mm with 640 512 px resolution.
This thermal variant was designed to meet the unique needs of aerial operations in firefighting, search and rescue, inspections, and night missions.
To assist professionals in locating hotspots and making prompt choices, the Mavic 3T's thermal camera provides point and area temperature measurement, high-temperature alarms, color palettes, and isotherms.
The drone’s thermal and zoom cameras offer 28 continuous side-by-side digital zoom for simple comparisons with simultaneous split-screen zoom.
High Performance Drone - Always!
Like all the other variants, this bundle takes mapping, surveying, and thermal imaging efficiency to a whole new level with a mechanical shutter, 56x zoom camera, and a 640×512 px thermal camera.
It is designed to perform on extended missions, making it ideal for both novice and experienced pilots. And since it has thermal imaging capabilities, the drone is also perfect for nighttime operations, search and rescue, inspection, and combating fires.
Weighing just about 920 g, DJI Mavic 3 Thermal is one of the market's lightest and most compact enterprise drones. It can be quickly deployed and can be easily held in one hand.
The batteries of the aircraft are optimized for endurance. With a 45-minute flight time at full charge, you may survey up to 2 square kilometers in a single trip, increasing the amount of ground you can cover on every mission.
After the flight, you may directly charge the drone with 88W or use a 100W charging hub to charge the batteries quickly.
The DJI Mavic 3 Thermal drone can fly farther and transmit signals with more stability thanks to DJI O3 Enterprise Transmission, which allows for a maximum control range of 15 km. This gives pilots more confidence when flying.
The aircraft also offers a 1080p/30fps high frame rate live broadcast. Transmission distance is a proxy for signal strength.
-

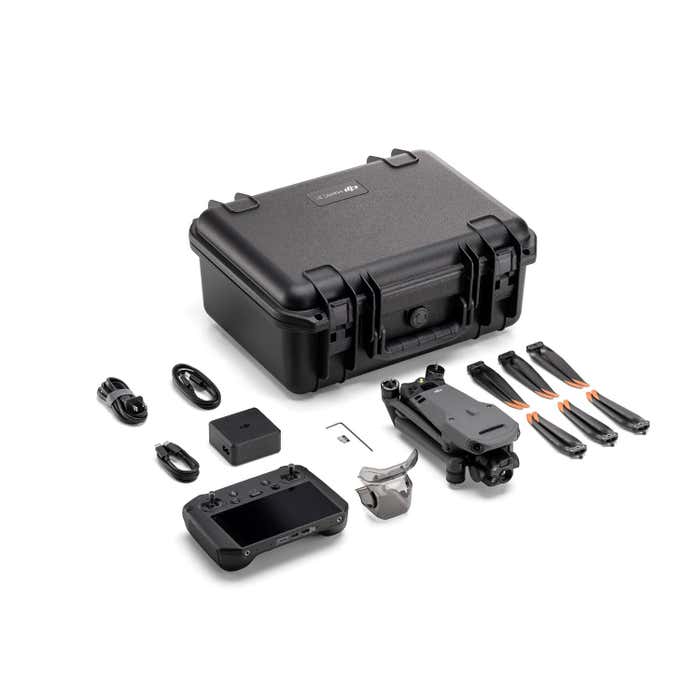

- 1x Mavic 3T Aircraft
- 1x Mavic 3 Intelligent Flight Battery
- 1x microSD Card 64GB
- 1x Gimbal Protector
- 3x Mavic 3 Enterprise Series Propellers (Pair)
- 1x RC Pro Enterprise
- 1x Screwdriver
- 1x USB-C Power Adapter (100W)
- 1x 100W Power Adaptor AC Cable
- 1x USB-C Cable
- 1x USB-C to USB-C Cable
- 1x Protector Case
-
Aircraft
- Weight (with propellers, without accessories): DJI Mavic 3E: 915 g | DJI Mavic 3T: 920 g
- Max Takeoff Weight: DJI Mavic 3E: 1,050 g | DJI Mavic 3T: 1,050 g
- Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H) | Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
- Diagonal Distance: 1 mm
- Max Ascent Speed: 6 m/s (Normal Mode) | 8 m/s (Sport Mode)
- Max Descent Speed: 6 m/s (Normal Mode) | 6 m/s (Sport Mode)
- Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode) | Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
- Max Wind Speed Resistance: 12 m/s
- Max Take-off Altitude Above Sea Level: 6000 m (without payload)
- Max Flight Time (no wind): 45 mins
- Max Hover Time (no wind): 38 mins
- Max Flight Distance: 32 km
- Max Tilt Angle: 30° (Normal Mode) | 35° (Sport Mode)
- Max Angular Velocity: 200°/s
- GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
- Hovering Accuracy: Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) | Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Internal Storage: N/A
- Motor Model: 2008
- Propeller Model: 9453F Propellers for Enterprise
- Beacon: Built into the aircraft
Wide Camera
- Sensor: DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP | DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
- Lens: DJI Mavic 3E: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8-f/11; Focus: 1 m to ∞ | DJI Mavic 3T: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8; Focus: 1 m to ∞
- ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
- Shutter Speed: DJI Mavic 3E: Electronic Shutter: 8-1/8000 s; Mechanical Shutter: 8-1/2000 s | DJI Mavic 3T: Electronic Shutter: 8-1/8000 s; Max Image Size; DJI Mavic 3E: 5280×3956; DJI Mavic 3T: 8000×6000
- Still Photography Modes: DJI Mavic 3E: Single: 20 MP; Timed: 20 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; JPEG+RAW: 3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 20 MP; Panorama: 20 MP (raw image) | DJI Mavic 3T:
- Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 2/3/5/7/10/15/20/30/60 s*; Panorama: 12 MP (raw image); 100 MP (stitched image); Smart Low-light Shooting: 12 MP | * Shooting 48MP photo does not support 2s interval
- Video Resolution:264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
- Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
- Supported File Formats: exFAT
- Photo Format: DJI Mavic 3E: JPEG/DNG (RAW) | DJI Mavic 3T: JPEG
- Video Format: MP4 (MPEG-4 AVC/H.264)
Tele Camera
- Sensor: 1/2-inch CMOS, Effective pixels: 12 MP
- Lens: FOV: 15° | Format Equivalent: 162 mm | Aperture: f/4.4 | Focus: 3 m to ∞
- ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
- Shutter Speed: Electronic Shutter: 8-1/8000 s
- Max Image Size: 4000×3000
- Photo Format: JPEG
- Video Format: MP4 (MPEG-4 AVC/H.264)
- Still Photography Modes: DJI Mavic 3E: Single: 12 MP; Timed: 12 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP | DJI Mavic 3T:
- Single: 12 MP; Timed: 12 MP; JPEG: 2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP
- Video Resolution: H.264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
- Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
- Digital Zoom: 8x (56x hybrid zoom)
Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Pixel Pitch: 12 μm
- Frame Rate: 30 Hz
- Lens: DFOV: 61° | Format Equivalent: 40 mm | Aperture: f/1.0 | Focus: 5 m to ∞
- Sensitivity: ≤50 mk@F1.1
- Temperature Measurement Method: Spot Meter, Area Measurement
- Temperature Measurement Range: -20° to 150° C (-4° to 302° F, High Gain Mode) | 0° to 500° C (32° to 932° F, Low Gain Mode)
- Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
- Photo Format: JPEG (8-bit) | R-JPEG (16-bit)
- Video Resolution: 640×512@30fps
- Bitrate: 6 Mbps
- Video Format: MP4 (MPEG-4 AVC/H.264)
- Still Photography Modes: DJI Mavic 3T: Single: 640×512; Timed: 640×512; JPEG: 2/3/5/7/10/15/20/30/60 s
- Digital Zoom: 28x
- Infrared Wavelength: 8-14 μm
- Infrared Temperature Measurement Accuracy: ±2° C or ±2% (using the larger value)
Gimbal
- Stabilization: 3-axis (tilt, roll, pan)
- Mechanical Range: DJI Mavic 3E: Tilt: -135° to 100°; Roll: -45° to 45°; Pan: -27° to 27° | DJI Mavic 3T: Tilt: -135° to 45°; Roll: -45° to 45°; Pan: -27° to 27°
- Controllable Range: Tilt: -90° to 35° | Pan: Not controllable
- Max Control Speed (tilt): 100°/s
- Angular Vibration Range: ±0.007°
Sensing
- Type: Omnidirectional binocular vision system supplemented with an infrared sensor at the bottom of the aircraft.
- Forward: Measurement Range: 0.5-20 m| Detection Range: 0.5-200 m | Effective Sensing Speed: Flight Speed ≤15 m/s| FOV: Horizontal 90°, Vertical 103°
- Backward: Measurement Range: 0.5-16 m | Effective Sensing Speed: Flight Speed ≤12 m/s | FOV: Horizontal 90°, Vertical 103°
- Lateral: Measurement Range: 0.5-25 m | Effective Sensing Speed: Flight Speed ≤15 m/s | FOV: Horizontal 90°, Vertical 85°
- Upward: Measurement Range: 0.2-10 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 100°, Left and Right 90°
- Downward: Measurement Range: 0.3-18 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 130°, Left and Right 160°
- Operating Environment: Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15) | Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
Video Transmission
- Video Transmission System: DJI O3 Enterprise Transmission
- Live View Quality: Remote Controller: 1080p/30fps
- Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
- Max Transmission Distance (unobstructed, free of interference): DJI Mavic 3E: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km | DJI Mavic 3T: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km
- Max Transmission Distance (Obstructed): Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) | Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
- Max Download Speed: 15 MB/s (with DJI RC Pro Enterprise)
- Latency (depending on environmental conditions and mobile device): 200 ms
- Antenna: 4 Antennas, 2T4R
- Transmission Power (EIRP): 4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC Pro Enterprise
- Video Transmission System: DJI O3 Enterprise Transmission
- Max Transmission Distance (unobstructed, free of interference): FCC: 15 km | CE/SRRC/MIC: 8 km
- Video Transmission Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
- Antenna: 4 Antennas, 2T4R
- Video Transmission Transmitter Power (EIRP):4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
- Wi-Fi Protocol:11 a/b/g/n/ac/ax | Support 2×2 MIMO Wi-Fi
- Wi-Fi Operating Frequency:400-2.4835 GHz | 5.150-5.250 GHz | 5.725-5.850 GHz
- Wi-Fi Transmitter Power (EIRP):4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
- Bluetooth Protocol: Bluetooth 5.1
- Bluetooth Operating Frequency: 400-2.4835 GHz
- Bluetooth Transmitter Power (EIRP): < 10 dBm
- Screen Resolution: 1920×1080
- Screen Size:5 inches
- Screen: 60 fps
- Brightness: 1,000 nits
- Touchscreen Control: 10-point multi-touch
- Battery: Li-ion (5000 mAh @ 7.2 V)
- Charging Type: Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
- Rated Power: 12 W
- Storage Capacity: Internal Storage (ROM): 64 GB | Supports a microSD card for expanded capacity.
- Charging Time: 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V) | Approx. 2 hours (with a USB charger at 12 V) | Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
- Operating Time: 3 hours
- Video Output Port: Mini-HDMI port
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Storage Temperature: -30° to 60° C (-22° to 140° F) (within one month) | -30° to 45° C (-22° to 113° F) (one to three months) | -30° to 35° C (-22° to 95° F) (three to six months) | -30° to 25° C (-22° to 77° F) (more than six months)
- Charging Temperature: 5° to 40° C (41° to 104° F)
- Supported DJI Aircraft: DJI Mavic 3E | DJI Mavic 3T
- GNSS: GPS+Galileo+GLONASS
- Dimensions: Antennas folded and controller sticks unmounted: 183.27×137.41×47.6 mm (L×W×H) | Antennas unfolded and controller sticks mounted: 183.27×203.35×59.84 mm (L×W×H)
- Weight: 680 g
- Model: RM510B
Battery
- Capacity: 5000 mAh
- Standard Voltage:4 V
- Max Charging Voltage:6 V
- Type: LiPo 4S
- Chemical System: LiCoO2
- Energy: 77 Wh
- Weight:5 g
- Charging Temperature: 5° to 40° C (41° to 104° F)
Charger
- Input: 100-240 V (AC Power), 50-60 Hz, 2.5 A
- Output Power: 100 W
- Output: 100 W (total) | When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
Charging Hub
- Input: USB-C: 5-20 V, 5.0 A
- Output: Battery Port: 12-17.6 V, 8.0 A
- Rated Power: 100 W
- Charging Type: Three batteries charged in sequence
- Charging Temperature Range: 5° to 40° C (41° to 104° F)
RTK Module
- Dimensions:2×40.2×66.2 mm (L×W×H)
- Weight: 24±2 g
- Interface: USB-C
- Power: 1.2 W
- RTK Positioning Accuracy: RTK Fix: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
